QV-IPC81365BY01-TPMS

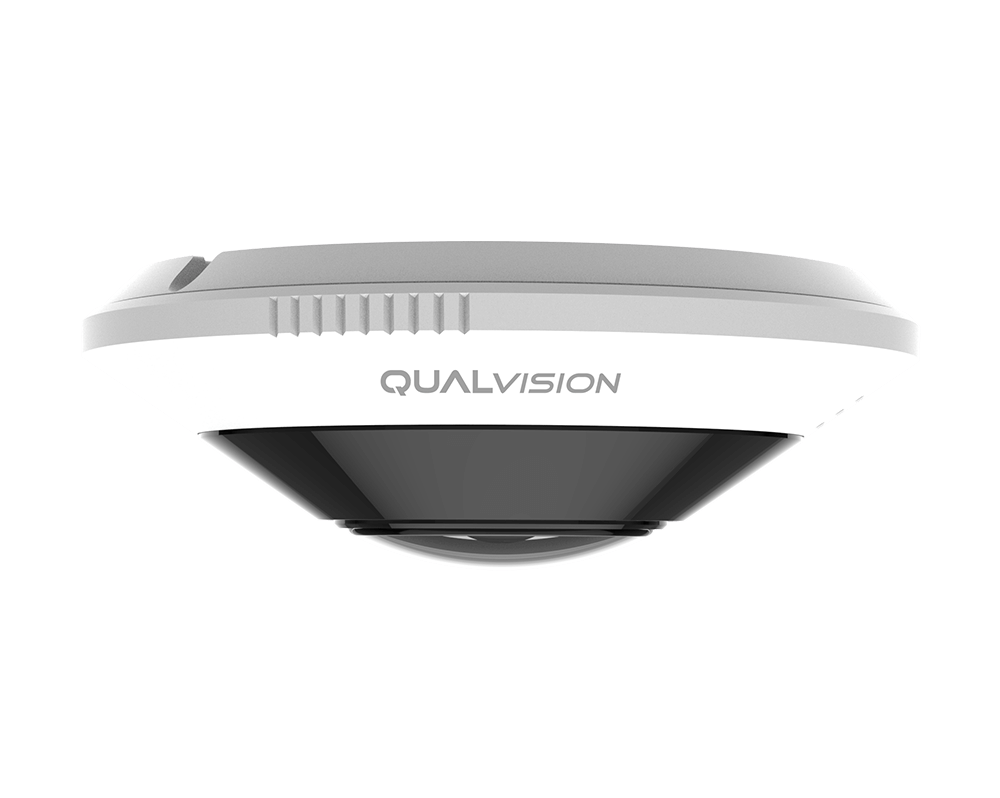

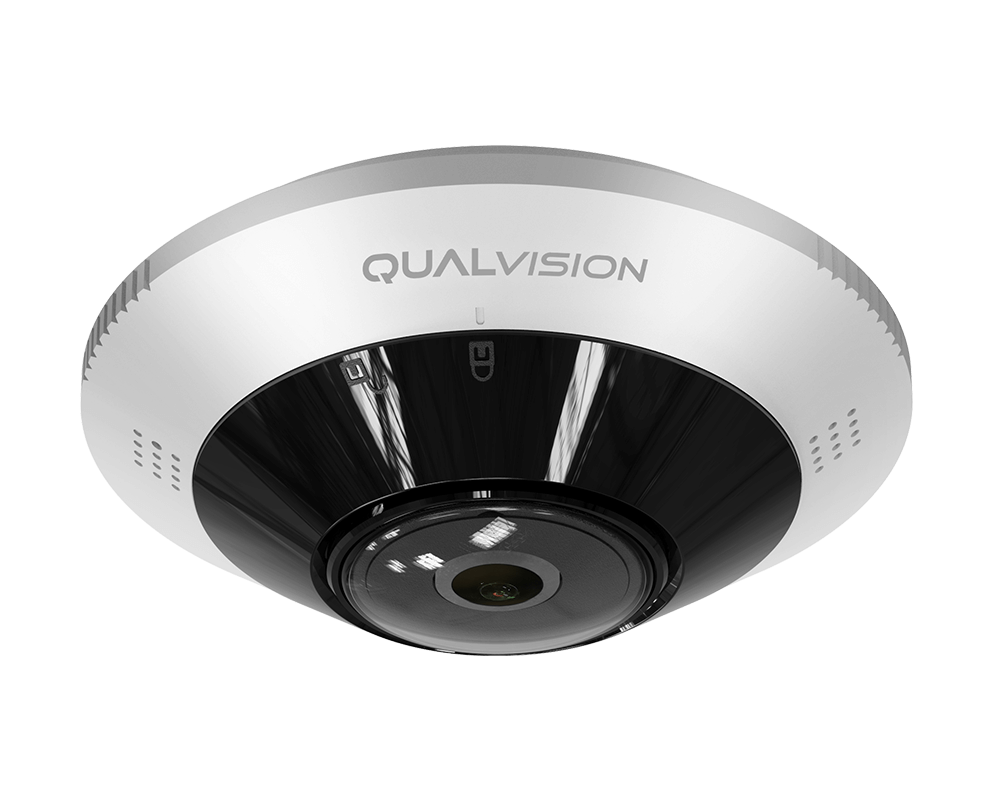

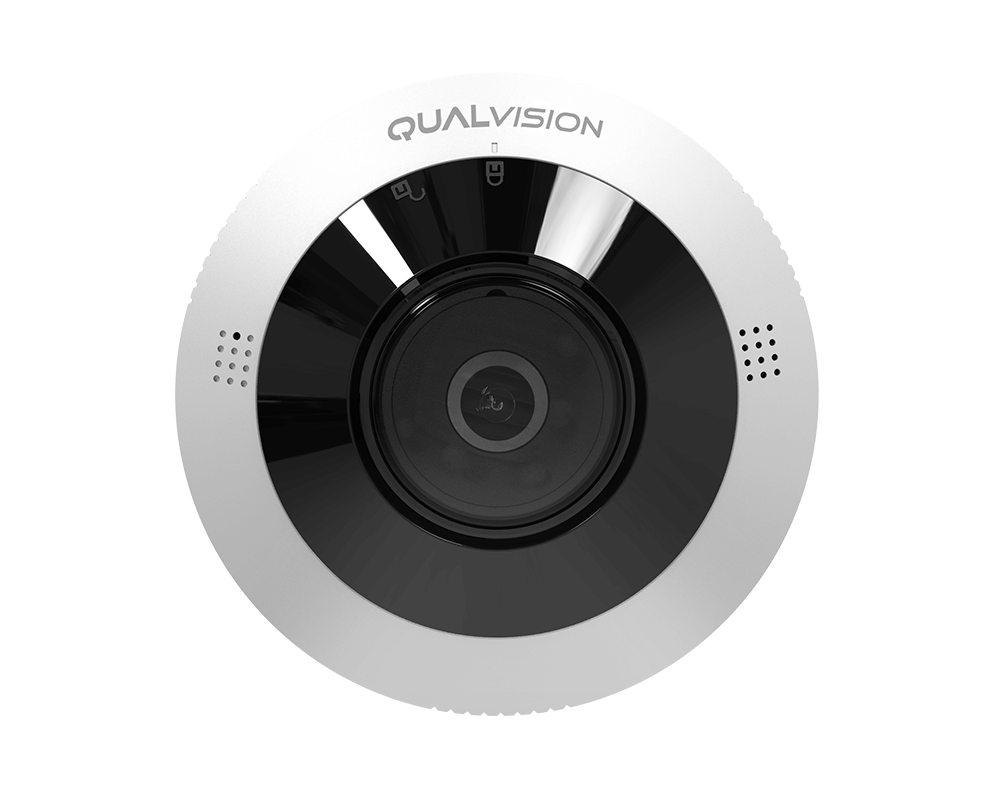

6MP Fisheye Camera

High quality imaging with 6MP resolution

Efficient H.265+ compression technology

Built-in microphone and speaker for real-time audio security

Multiple dewarp modes

Water and dust resistant (IP67）

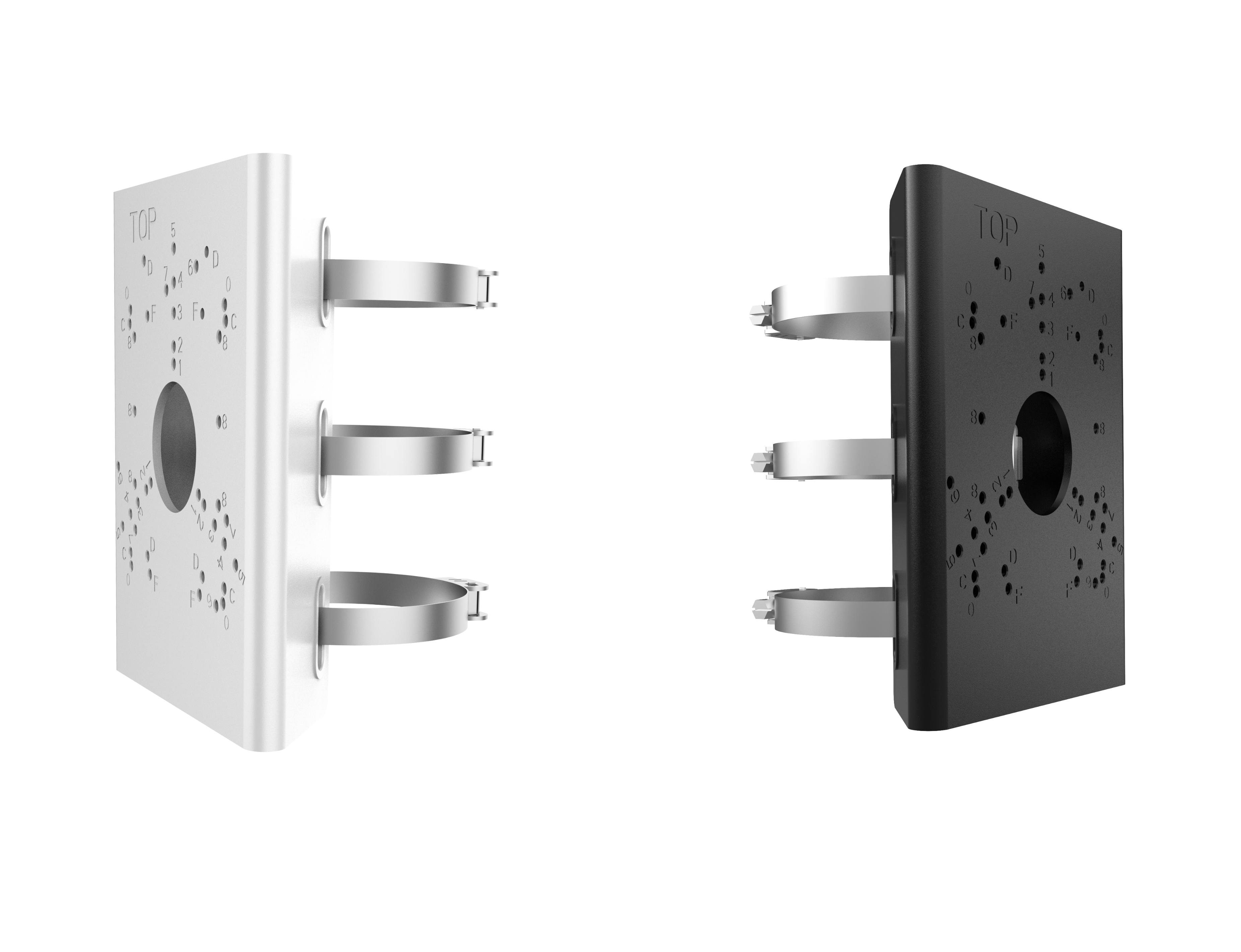

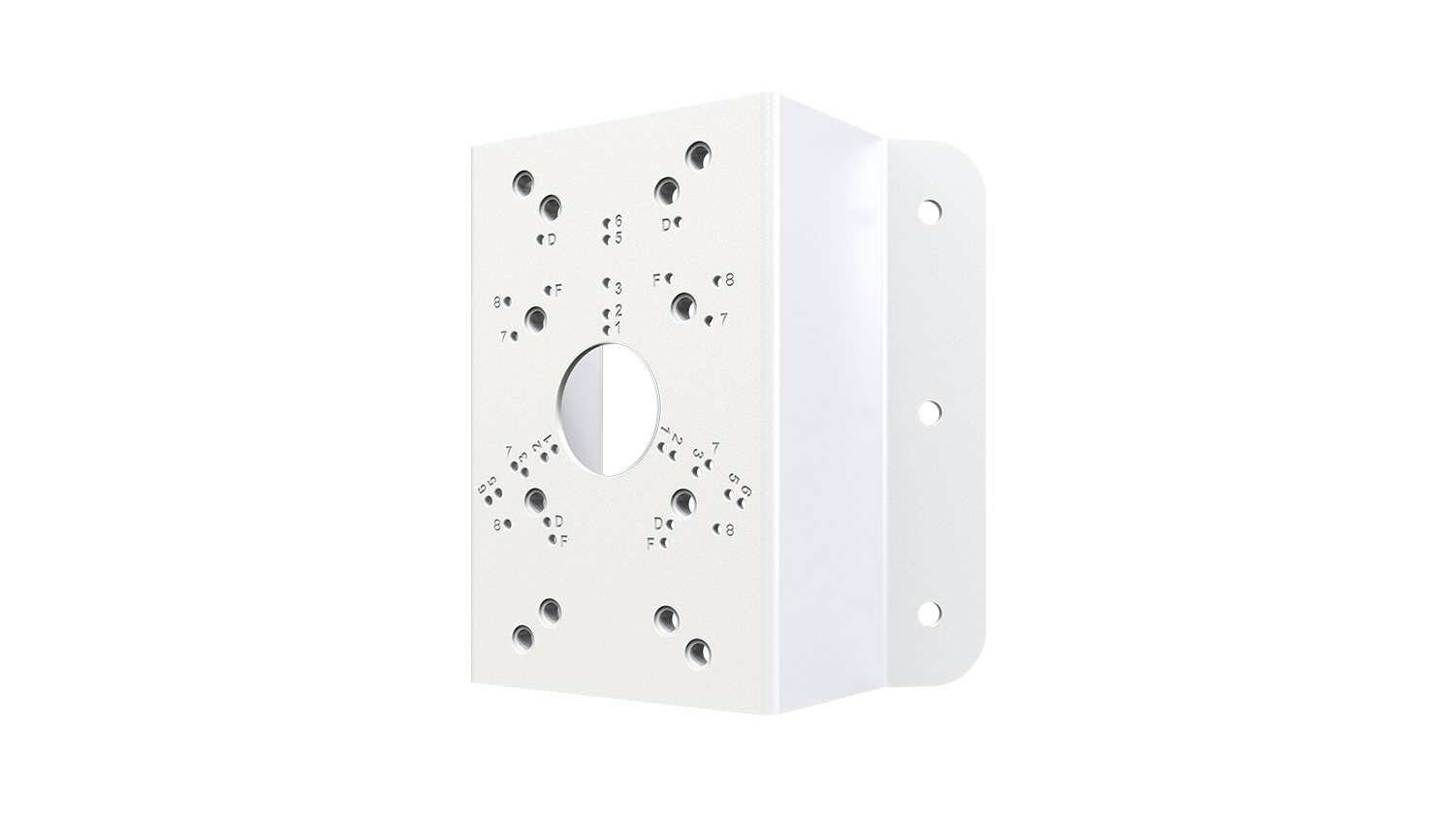

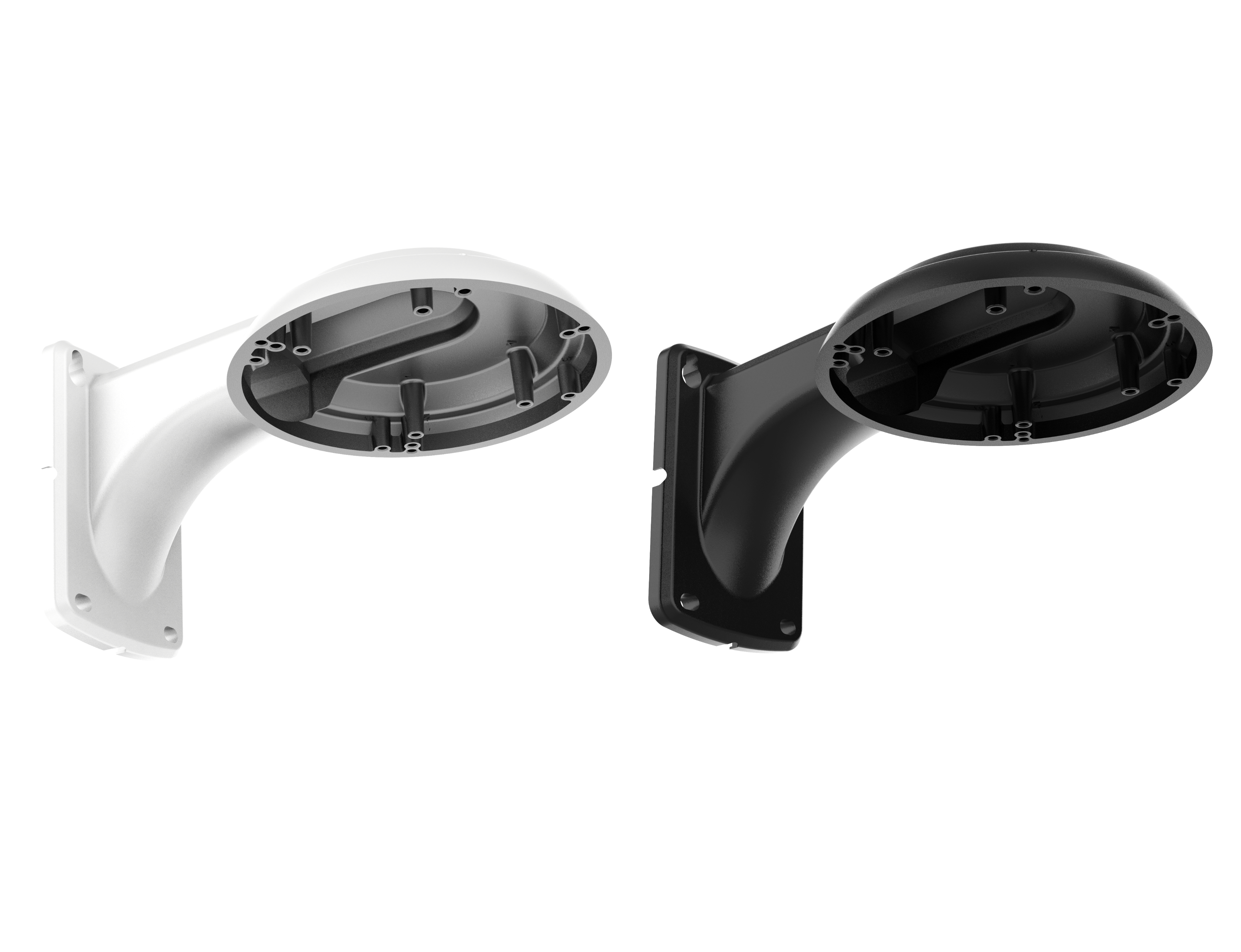

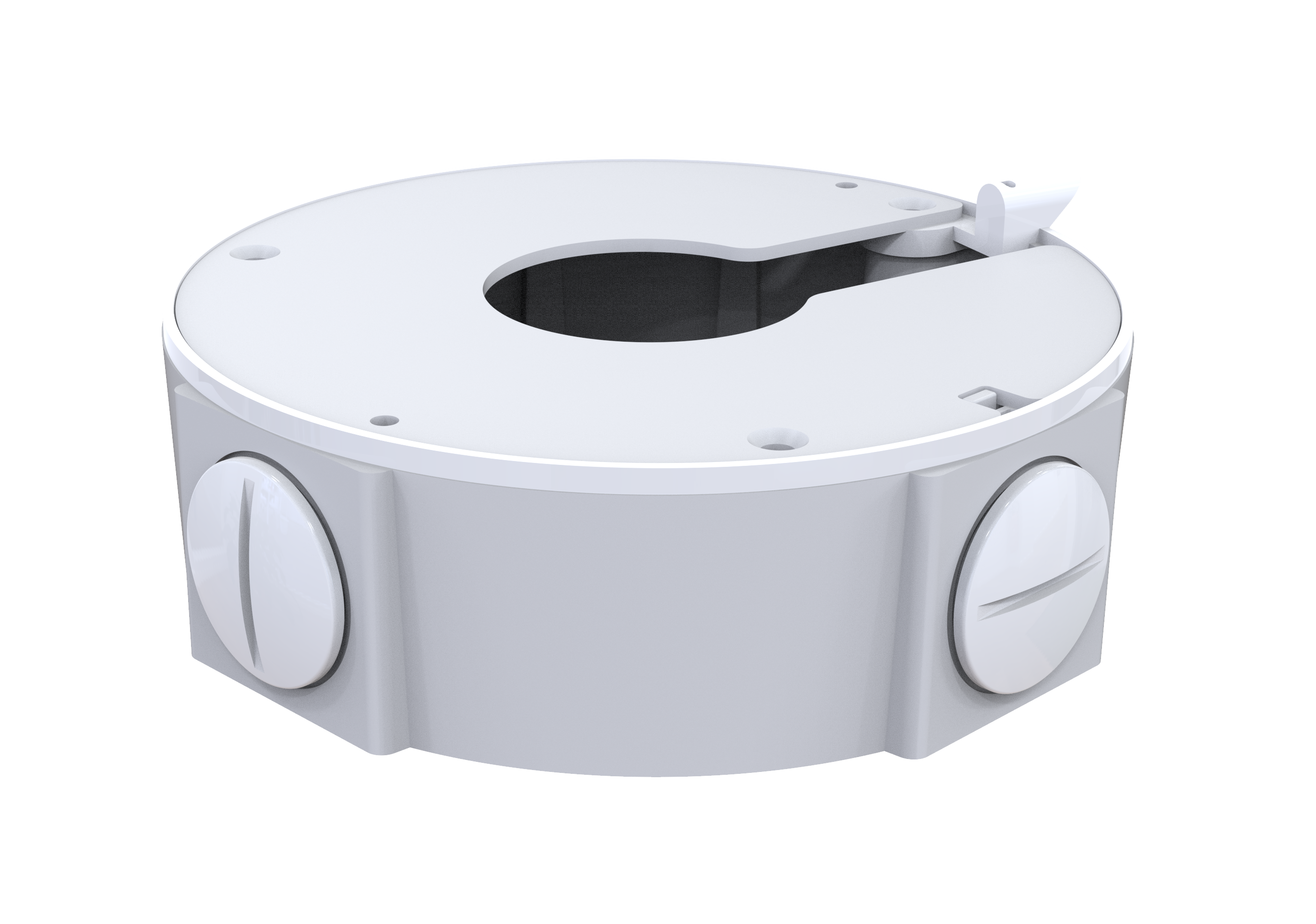

Specification Download Accessories

Camera
Image Sensor	1/2.5" Progressive Scan CMOS Sensor
Min. Illumination	0.008 lux (Color), 0 Lux (IR on)
Illumination Distance	20m (IR light)
Strobe Light	N/A
Smart IR	Support
Shutter Time	Auto/Manual, 1/3 ~ 1/100000 s
Pan/Tilt/Rotation Range	N/A
Day/Night	IR cut filter
Wide Dynamic Range	DWDR
Digital Noise Reduction	3D DNR
Lens
Focal Length	1.68 mm
Aperture	F2.0
FOV	Horizontal FOV: 180°, vertical FOV: 180°
Lens Mount	M12
DORI
DORI	1.68 mm, D: 33 m, O: 13 m, R: 6.5 m, I: 3.3 m
Compression Standard
Video Compression	H.264/H.264+/H.265/H.265+/MJPEG
H.264 Codec Profile	Base/Main/High profile
H.265 Codec Profile	Main profile
Video Bit Rate	11 Kbps ~ 10 Mbps
Triple Streams	N/A
Audio Compression	G.711A, G.711U
Audio Bit Rate	64 Kbps
Max. Image Resolution	2560 × 2560
Main Stream	Fisheye	50HZ: 25fps (2560 × 2560, 1920 × 1920) 60HZ: 30fps (2560 × 2560, 1920 × 1920)

	Panoramic	50HZ: 15fps (1920 × 1080, 1280 × 720)
		60HZ: 15fps (1920 × 1080, 1280 × 720)
	4 PTZ	50HZ: 15pfs (1024 × 768)
		60HZ: 15pfs (1024 × 768)
	Fisheye + Panoramic + 3 PTZ	50HZ: 25fps (1920 × 1920) +15fps (1920 × 1080) + 15fps (1024 × 768) 3 60HZ: 30fps (1920 × 1920) +15fps (1920 × 1080) + 15fps (1024 × 768) 3

	Fisheye + 4 PTZ	50HZ: 25fps (1920 × 1920) + 15fps (1024 × 768) 4 60HZ: 30fps (1920 × 1920) + 15fps (1024 × 768) 4

	Panoramic + 4 PTZ	50HZ: 15fps (1920 × 1080, 1280 × 720) + 15fps (1024 × 768) 4 60HZ: 15fps (1920 × 1080, 1280 × 720) + 15fps (1024 × 768) 4

Sub Stream	Fisheye	50HZ: 25fps (960 × 960, 480 × 480) 60HZ: 30fps (960 × 960, 480 × 480)

	Panoramic	50HZ: 15fps (704 × 576,352 × 288) 60HZ: 15fps (704 × 480 , 352 × 240)

	4 PTZ	50HZ: 15pfs (640 × 480) 60HZ: 15pfs (640 × 480)

	Fisheye + Panoramic + 3 PTZ	50HZ: 25fps (960 × 960, 480 × 480) +15fps (704 × 576) + 15fps (640 × 480) 3 60HZ: 30fps (960 × 960, 480 × 480) +15fps (704 × 480) + 15fps (640 × 480) 3

	Fisheye + 4 PTZ	50HZ: 15fps (960 × 960, 480 × 480) + 15fps (640 × 480) 4 60HZ: 15fps (960 × 960, 480 × 480) + 15fps (640 × 480) 4

	Panoramic + 4 PTZ	50HZ: 15fps (704 × 576 , 352 × 288) + 15fps (640 × 480) 4 60HZ: 15fps (704 × 480 , 352 × 240) + 15fps (640 × 480) 4

Third Stream	N/A
Image Setting	Brightness/Contrast/Saturation/Hue/Sharpness
BLC	Support
HLC	Support
ROI	Support
Smart Feature
Basic Event	Motion detection, Video Shelter
Smart Event	Line crossing detection, Area intrusion, Region Entrance, Region Exiting
Network
Network Storage	NAS (NFS, SMB/CIFS)
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P
System Compatibility	Onvif (Profile S, G,T), CGI, SDK
Security	Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1,1.2, WSSE and digest authentication for Open Network Video Interface
User	Up to 40 users
Web Browsers	Plug-in required live view: IE 10, IE 11
	Local service: Chrome 57.0+, Firefox 52.0+
Mobile Surveillance	IOS, Android
Interface
Communication interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board storage	Up to 256 GB
MIC	Support
Speaker	Support
Audio I/O	1/1
Alarm I/O	1/1
Reset button	Support
General
Operating Conditions	-40°C ~ 60°C (-40°F ~ 140°F) Humidity 95% or less (non-condensing)

Power Supply	DC 12 V ± 25%
POE	PoE (802.3 af)
Power Consumption	MAX.9 W
Protection Level	IP67
Material	Metal
Dimensions	Φ 152 mm × 53 mm (Φ 5.98'' × 2.08'')
Gross Weight	724 g (1.59 lb)
