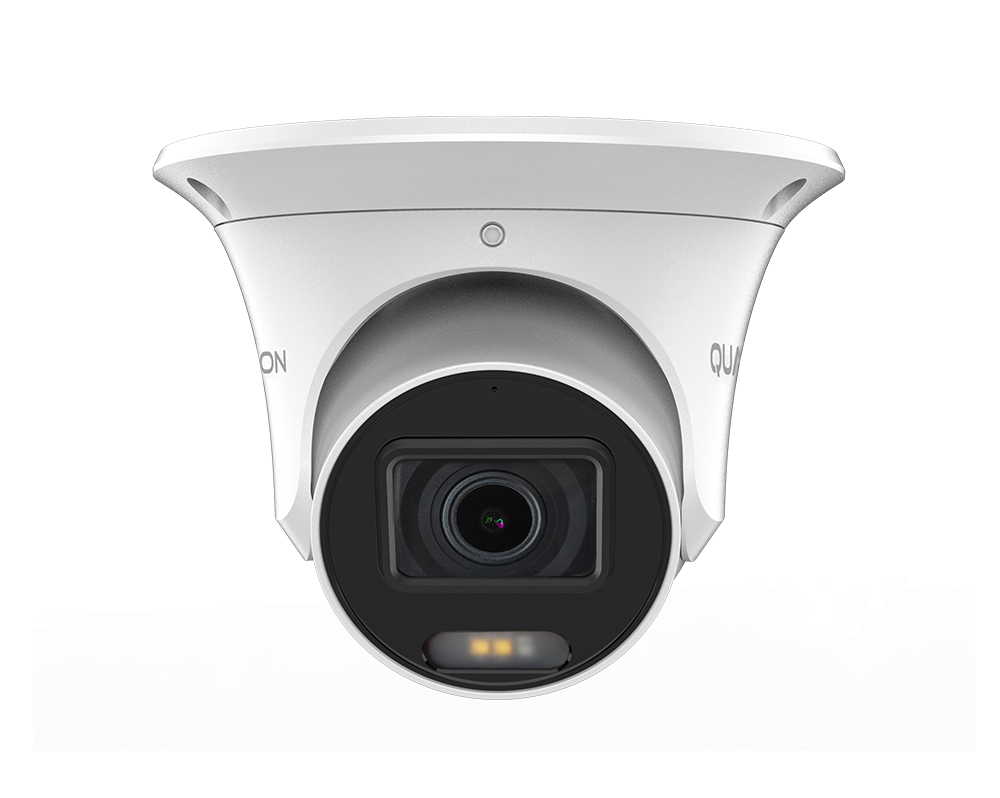

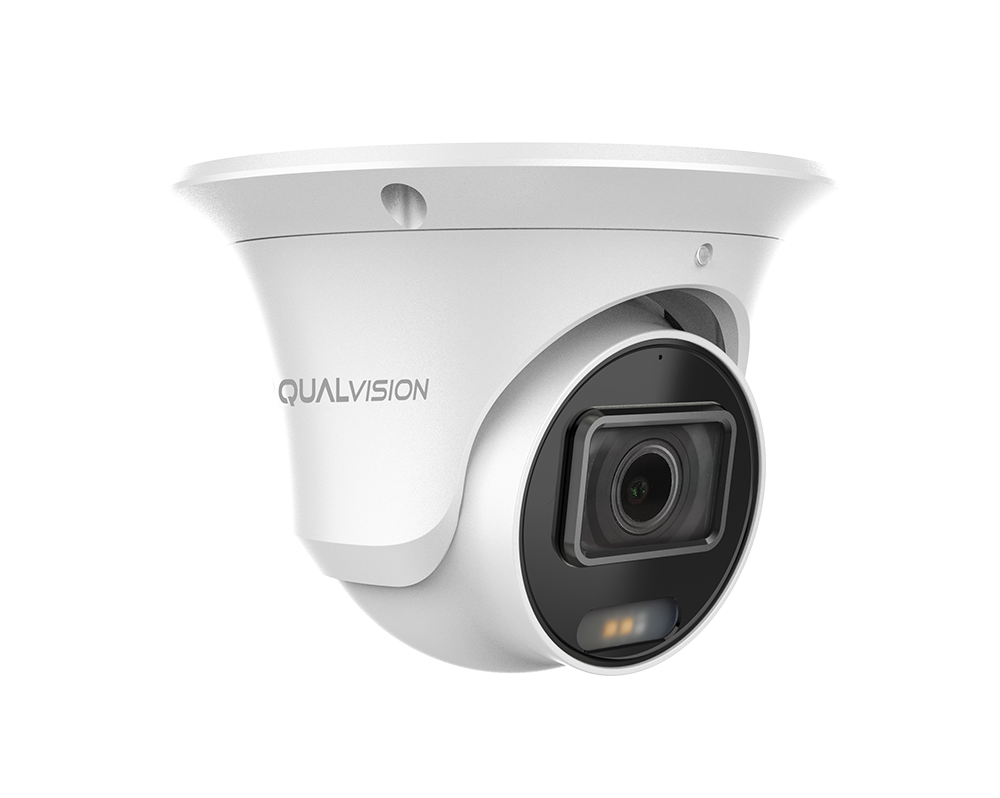

QV-IPC613423T9C-TPMC

Camera

Image Sensor

1/1.8" Progressive Scan CMOS Sensor

Min. Illumination

0.0005Lux (Color) , 0 Lux with Light

Illumination Distance

30m (warm light)

Strobe Light

N/A

Smart IR

N/A

Pan/Tilt/Rotation Range

Pan: 0° ~ 360°
Tilt: 0° ~ 75°
Rotation: 0° ~ 360°

Lens

Focal Length

2.8 mm

Aperture

F1.0

FOV

2.8 mm @ F1.0 Horizontal FOV: 112°, Vertical FOV: 60° , Diagonal FOV: 131°

Lens Mount

M16

DORI

DORI

2.8 mm, D: 60 m, O: 23.5 m, R: 11.8 m, I: 5.9 m

Compression Standard

Video Compression

H.264/H.264+/H.265/H.265+/MJPEG

H.264 Codec Profile

Base /Main /High profile

H.265 Codec Profile

Main Profile

Video Bit Rate

11 Kbps ~ 10 Mbps

Triple Streams

Support

Audio Compression

G.711A, G.711U

Audio Bit Rate

64 Kbps


Max. Image Resolution

4M (2688 × 1520)

Main Stream

50Hz: 25fps 4M (2688 × 1520)

          25fps 4M (2560 × 1440)

          25fps 1080P (1920 × 1080)

60Hz: 30fps 4M (2688 × 1520)

          30fps 4M (2560 × 1440)

          30fps 1080P (1920 × 1080)

Sub Stream

50Hz: 25fps 720P (1280 × 720)

          25fps D1(704 × 576), 25fps CIF(352 × 288)

60Hz: 30fps 720P (1280 × 720)

          30fps D1 (704 × 480) , 30fps CIF ( 352 × 240)

Third Stream

50Hz: 25fps CIF (352 × 288)

60Hz: 30fps CIF (352 × 240)

Image Setting

Brightness/Contrast/Saturation/Hue/Sharpness

Shutter Time

Auto/Manual, 1/3~1/100000s

Day/Night

24/7 color imaging

Wide Dynamic Range

130 dB

Digital Noise Reduction

2D/3D DNR

BLC

Support

HLC

Support

ROI

Support

Rotate

Support

Smart Feature

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle) ) , Video Shelter

Smart Event

Line crossing detection, Area intrusion, Region Entrance, Region Exiting (support alarm triggering by specified target types (human and vehicle) )

Scene Change Detection

Face Detection

Support

Network

Network Storage

NAS (NFS , SMB/CIFS) , ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

System Compatibility

Onvif (Profile S, Profile G, T) , SDK

Security

Password protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

User

Up to 40 users

Web Browsers

Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+

Mobile Surveillance

IOS, Android

Interface

Communication interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-board storage

Up to 256GB

MIC

Support

Speaker

N/A

Audio I/O

1/1

Alarm I/O

1/1

Reset button

Support

General

Operating Conditions

-40°C ~ 60°C (-40°F ~ 140°F)
Humidity 95% or less (non-condensing)

Power Supply

DC12V ± 25%

POE

PoE (802.3 af)

Power Consumption

MAX. 7 W

Protection Level

IP67

Material

Metal

Dimensions

Φ 140 × 104.7 mm (Φ 5.51'' × 4.12'')

Gross Weight

870 g (1.92 lb)
